Skid Steer Controls Explained: Master Radial vs. Vertical Lift Models
Acquainting yourself with the working principle of your equipment is the initial step towards achieving efficiency on your worksite. When it comes to compact machinery, especially if you are looking through the range of SkidSteer.online, the key factor that will influence your work zone, the change in attachment capacity, and also the safety aspect of your operations is the selection between skid steer controls like radial and vertical lift paths.
What Are Skid Steer Controls?
Skid steer controls serve as the communication channel between the operator’s commands and the machine’s hydraulic system performing output. The latest TYPHON STOMP Series machines, for instance, boast a control system that transforms manual operations into intuitive procedures. The basic difference between master radial vs. vertical lift models is that the “lift path” indicates the shape of the loader arms movement from the ground to the highest point.
- Hydraulic Efficiency: Cutting-edge solutions mainly depend on systems like the Italian HANSA closed-loop one to render the driving-lifting work as seamless as possible.
- Joystick Facility: Leading brands embed the Lufthansa joystick control system, permitting the operator to perform multipurpose movements with minimum exertion.
- Close-range Visibility: How controls, tower, and lift arms are laid out play a leading part in the amount of bucket or tool seen by the operator during a lifting cycle.

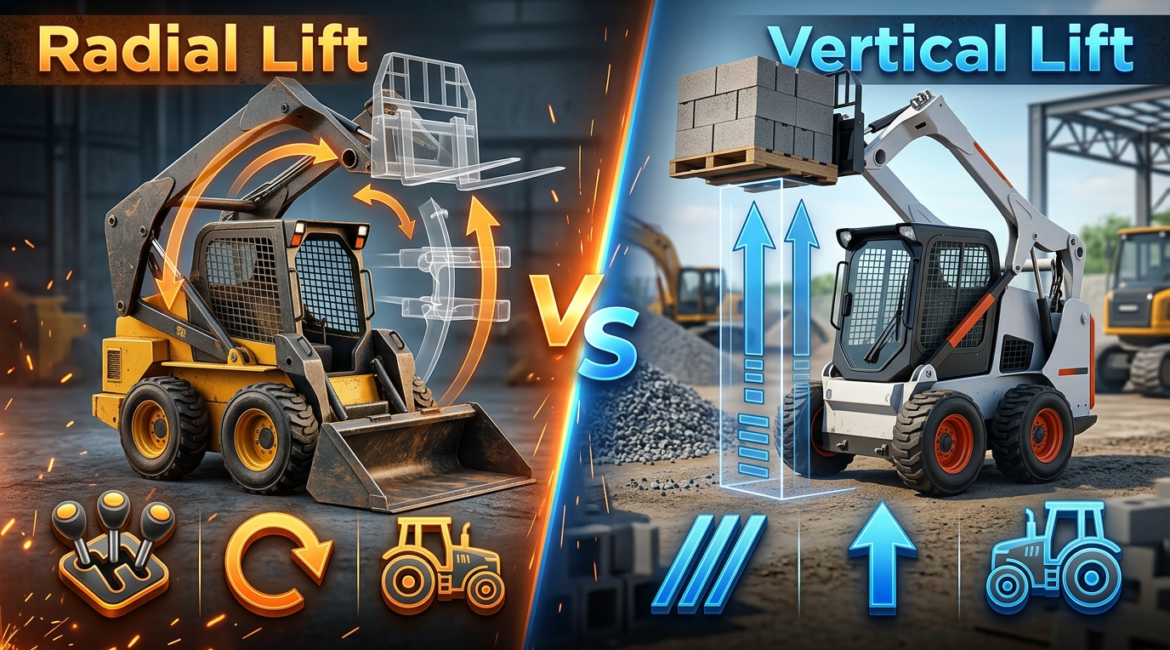

Master Radial Lift Models: Understanding the Arc
Radial lift models have a loader arm that moves in a most forward-arc-type of motion. During the lift, approximately when the arms are at the operator’s eye level, they make the furthest forward point.
This makes them the prime choice for any job at or below the mid-level height of the machine.
- Reach at Mid-Level: Great for unloading to low walls, soil spreading, and trench backfilling when reach is key at chest height.
- Lower Maintenance: Radial machines that include only one pivot point are easy to maintain and keep lubricated, help even in prolonged hardworking scenarios.
- Visibility Benefits: Radial lift arms are retracted lower on the chassis, hence the operator gets a clear side and rear view.
Master Vertical Lift Models: Accessing the Sky
Similar to the STOMP X1300, vertical lift types will hold the object close to the frame of the machine during most of the rising phase of the bucket before that very top point at which it is extended forward.
The shape of the movement line is approximately vertical. The design of the machinery to a large extent involves linkages. The vertical lift is more complicated and corresponds to the lift of the highest heavy load.
- Maximum Reach for Height: You can continue to load trucks with high sides or stack pallets in a warehouse where buckets only extend-forward at the top.
- More Stability: The model of vertical lift often boasts a higher rated operating capacity (ROC) since it keeps the center of gravity closer to the machine during the initial lift.
- Accurate Placement: With the Auger 200mm or Fork Pallet Attachment, placement and downward pressure can be finely controlled.

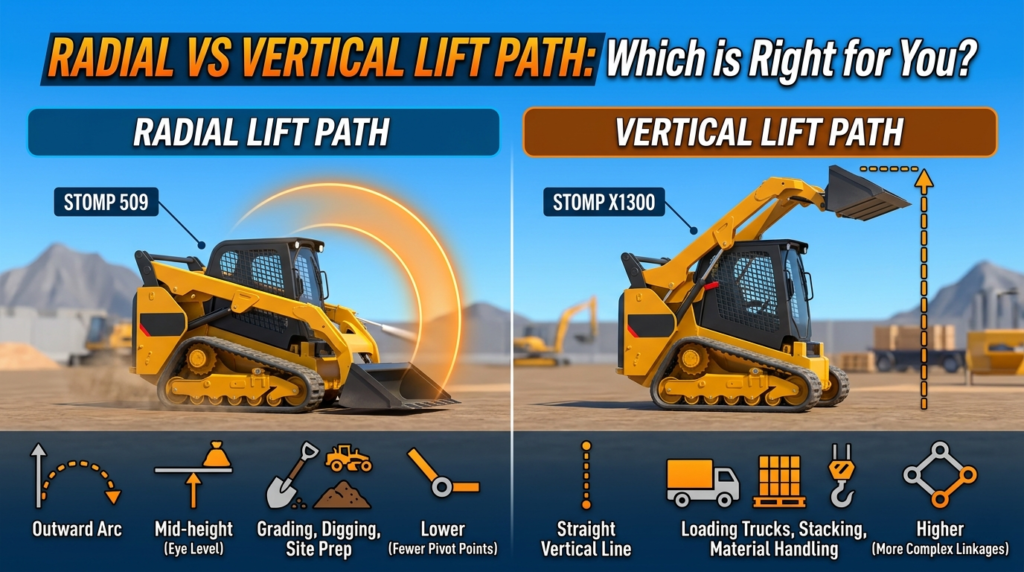

Feature |
Radial Lift Path |
Vertical Lift Path |
Movement Shape |
Outward Arc |
Straight Vertical Line |
Best Reach Point |
Mid-height (Eye Level) |
Maximum Height (Full Extension) |
Primary Use |
Grading, Digging, Site Prep |
Loading Trucks, Stacking, Material Handling |
Maintenance |
Lower (Fewer Pivot Points) |
Higher (More Complex Linkages) |
Typical Model |
STOMP 509 (Agile Frame) |
STOMP X1300 (High Pin Height) |
Making the Most of Your Lift Path with the Right Attachment
The usability of your skid steer controls also depends largely on the attachment. SkidSteer.online helps you to find equipments for particular lift behaviors. A radial lift path, for instance, is usually coupled with a Forestry Mulcher or Ripper 3-Tooth for work at ground level, whereas attachments like a Digger Attachment or Snow Blower are stabilized with vertical lifts.
- Ground Engagement: The Rotary Tiller type tool needs to exert a steady downward force, which fits in well with radial lift controls that respond to the operator.
- Height Dependent Tools: When a vertical lift is used to load debris into high-clearance containers, the 4-in-1 Bucket Combo makes an impact.
- Specialized Handling: A Hydraulic Wood Grabber needs the exactness of a vertical lift so that logs can be stacked safely without tipping the machine’s balance.
Technical Specifications: The TYPHON Advantage
When you get to know radial vs. vertical lift models, you will be able to closely examine the technical characteristics of these products. High pin height is one of the distinctive features of a vertical lift design, and an X1300 machine, for example, has a pin height of 2352mm (92.6″). This characteristic will allow operators to easily dump on the sides of most trucks.
- Engine Performance: Diesel engines Kubota D1105 25HP are used to power these versatile machines meeting the torque requirement for both lifts.
- Cooling System: Your skid steer controls will stay highly responsive even after long hours of operation thanks to the intelligent cooling system that keeps the hydraulics from overheating.
- Compact Packaging: Despite the powerful performance, these machines can be as narrow as 900mm in width which is great for accessing tight corridors in residential areas.
Care and Maintenance Tips for Lift Systems
The attention to detail in lift linkage maintenance should be the same irrespective of whether your radial or vertical model has been chosen. Loose pivot pins cause the “slop” in control equipment that leads to the loss of accurate movement and even to the danger of the operator.
- Daily Lubrication: Each day, grease the main pivot pins without fail, especially if we are talking about vertical lift models with more moving parts.
- Hydraulic Fluid Maintenance: To ensure instant response of controls, make it a habit to check the fluid levels and condition as the Italian HANSA system depends on clean fluid.
- Pin Inspection: Regularly, especially when the loader is involved in a lot of heavy prying with Ripper Attachment, examine the arms for signs of wear and small cracks.
Master Radial vs. Vertical Lift Models: Final Decision
What is your choice? If digging, grading, and site preparation dominate your work throughout the day, you will probably not be able to do without your radial lift. The ease of use and the effective reach at the mid-level are very well suited not only for landscaping but also for farm work.
But if loading trucks, moving pallets, or overcoming obstacles are your concerns, the vertical lift would be the clear choice. Learning about these skid steer controls will help you get the most from your investment in TYPHON equipment via SkidSteer.online.
FAQ’s: Skid Steer Lift Paths
Which is better for digging: radial or vertical lift?
The radial lift is suited better for digging and other ground level work because the arc of the path offers better leverage and better visibility to the ground.
Can a vertical lift skid steer tip over easier?
Actually, vertical lift models are often more stable when lifting heavy loads to full height because they keep the load closer to the machine’s center of gravity until the very top.
Is maintenance more expensive for vertical lift models?
Yes, typically. Because vertical lift paths use a more complex linkage system with more pivot points and pins, they require more frequent greasing and inspection.
What does “High Pin Height” mean?
High pin height means the hinge pin where the attachment is connected to the loader arms is located at the highest level. For example, the X1300 has a pin height of 2352mm, which means you can dump onto taller trucks.
Are radial lift skid steers cheaper?
Generally, yes. Due to the simpler design of the loader arms, radial lift models often have a lower initial purchase price than their vertical lift counterparts.
Which lift path is best for pallet forks?
Vertical lift is superior for pallet forks. Lifting the load straight up while keeping the forks level and the load stable is the benefit you get with the vertical path.
Does lift path affect the visibility of the attachment?
Yes. Radial lift arms usually sit lower, offering better side visibility. Vertical lift machines may have more “towers” or linkages that can slightly obstruct the view to the rear corners.
